詳細情報 |
|||
| Model: | HZ-30617 | Color: | Green/Grey/Blue |
|---|---|---|---|
| Thickness: | 1.8mm,2mm,3mm | Normal Size: | 1m*10m;1.2m*10m |
| Material: | Rubber | Volume Resistance: | 10e7-10e10 ohm.cm |
| Surface Resistance: | ≤10e6ohm | Surface Type: | Matt/Glossy |
| Static Dissipation Resistance: | 10e7-10e9 ohm | Friction Electrostatic Charge: | <100V |
| Conductive Layer Resistance: | ≤10e6 ohm | Conductive Friction Charge: | <50V |
| High Temp Resistance: | 300°C | Low Temp Resistance: | -30°C to 70°C |
| Burning Point: | 400°C | ||
| ハイライト: | ESD rubber table mat anti-static,thick ESD rubber mat 1.8mm-3mm,anti-static surface rubber mat |
||
製品の説明

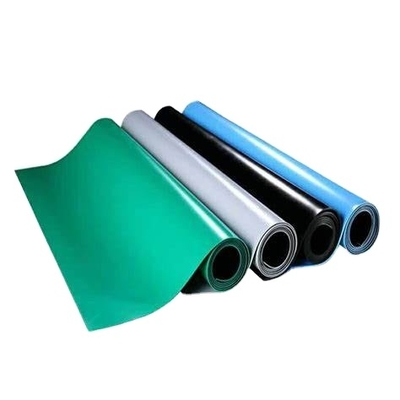

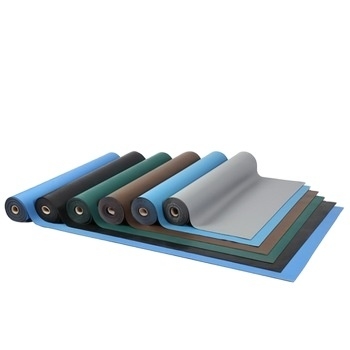

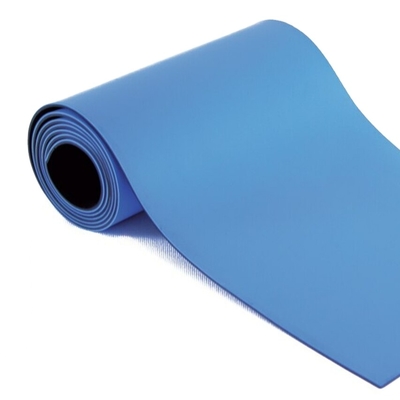

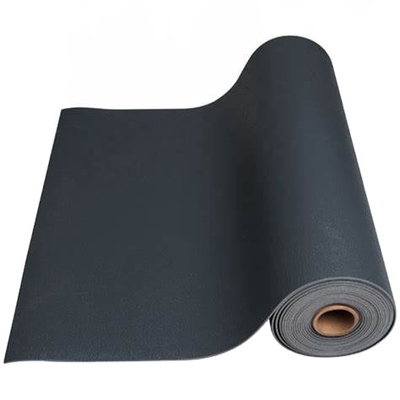

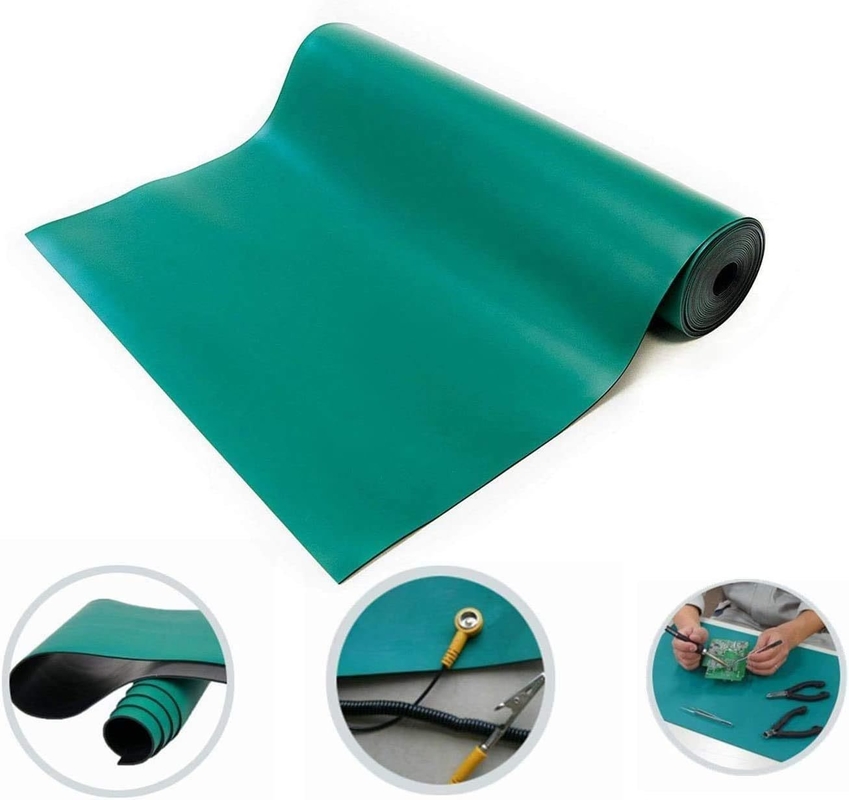

Anti Static ESD Desk Mat Cleanroom Antistatic Table Mats Roll Antistatic ESD Rubber Mat
Product Specifications
| Processing Service | Cutting |
| Product Name | ESD Table Mat |
| Model | HZ-30617 |
| Color | Green/Grey/Blue |
| Thickness | 1.8mm, 2mm, 3mm |
| Normal Size | 1m*10m; 1.2m*10m |
| Material | Rubber |
| Volume Resistance | 10e7-10e10 ohm.cm |
| Surface | Matt/Glossy |
| Feature | Eco-Friendly |
| Surface Resistance | ≤10e6ohm |
Product Description
ESD table mats are designed to drain static charges from items placed on their surface. They protect ESD-sensitive devices from wear-and-tear while maintaining antistatic properties through durable construction.
| Model | HZ-30617 |
| Thickness | 1.8mm, 2mm, 3mm |
| Normal Size | 1m*10m; 1.2m*10m |
| Color | Green/Grey/Blue |
| Surface | Matt/Glossy |
| Volume Resistance | 10e7-10e10 ohm.cm |
Key Features:
- Highly wear-resistant with excellent toughness and bending resistance
- Double-layer composite structure with static dissipative surface and conductive bottom layer
- Secure table adhesion with anti-aging properties for long-term use
- Temperature resistant from -30°C to 70°C, withstanding up to 300°C without discoloration
Technical Specifications
| Static Dissipation Layer | ||
| Surface Resistance | 10e7 -10e9 ohm | |
| Friction Electrostatic Charge | <100V | |
| Conductive Layer | ||
| Surface Resistance | ≤10e6 ohm | |
| Friction Electrostatic Charge | <50V | |
| Volume Resistance | 10e7 -10e10 ohm*cm | |
Why You Need ESD Protection For Your Production Line
Electronic components sensitive to electrostatic discharges (ESD) can be damaged when exposed to current levels beyond their tolerance. Human handling often generates sufficient static to damage these components. Implementing ESD-safe procedures according to IEC 61340 or ANSI S2020 standards provides essential protection and quality assurance.
Why Choose HerzESD
HerzESD is committed to providing accurate ESD solutions and information, even when it challenges conventional wisdom. We partner with reliable manufacturers to deliver effective static control solutions while continuously improving our products and services.
