商品の詳細:

起源の場所: 中国
ブランド名: Herzesd
モデル番号: HZ-30617

お支払配送条件:

最小注文数量: 100
ベストプライス 連絡先

詳細情報

厚さ: 2mm/3mm 材料: ニトリルゴム
表面抵抗: 10e6-10e9オーム レイヤー抵抗下: 10e3-10e6オーム
サイズ: 1*10M; 0.6*10M; 1.2*10M/ロール 体積抵抗: 10e7-10e10 Ohm*cm
摩擦静電電荷: <100V(表面)、<50V(導電層) モデル: HZ-30617
通常のサイズ: 1m*10m; 1.2m×10m 色: 緑/灰色/青
表面タイプ: マット/光沢 静的散逸層: 表面抵抗107-109OHM
伝導性の層: 表面抵抗≤106OHM 処理サービス: 切断
色をカスタマイズしなさい: サンプルで利用できます
ハイライト:

ESD rubber mat 2mm thickness

,

ESD mat 10e6-10e9 ohm resistance

,

anti-static rubber mat with warranty

製品の説明

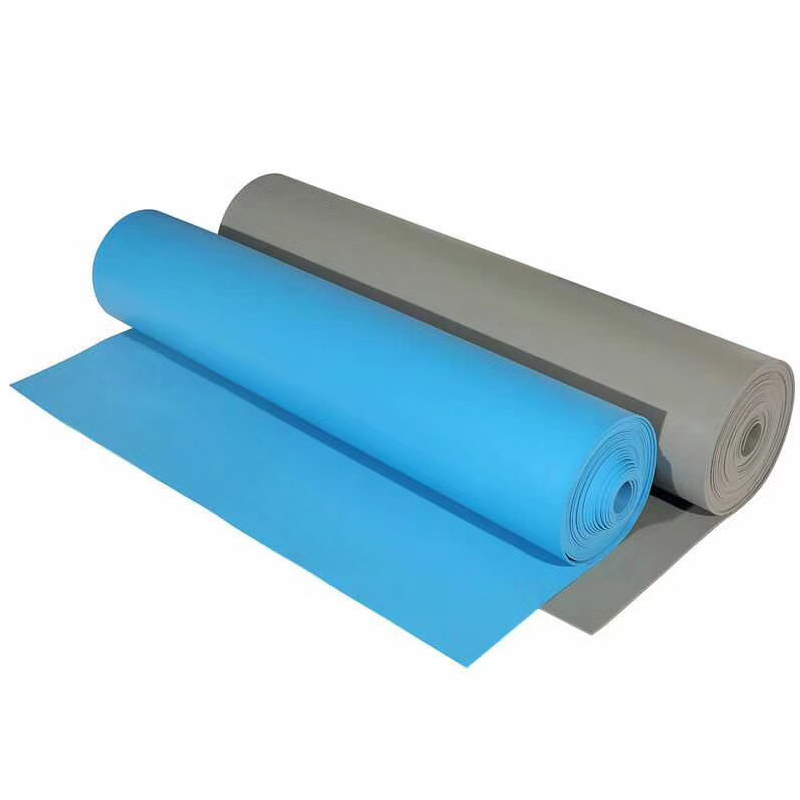

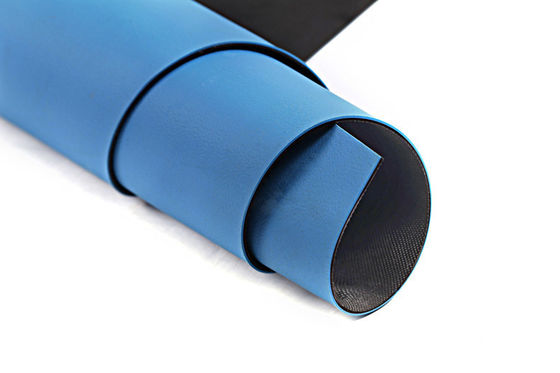

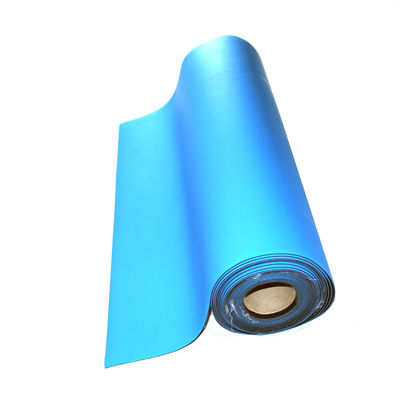

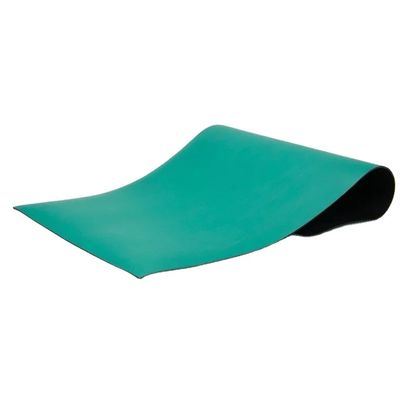

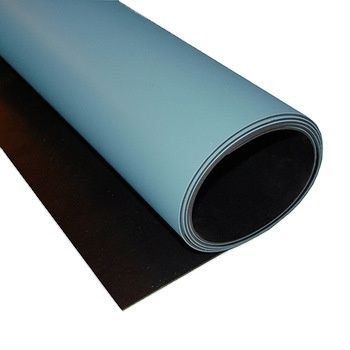

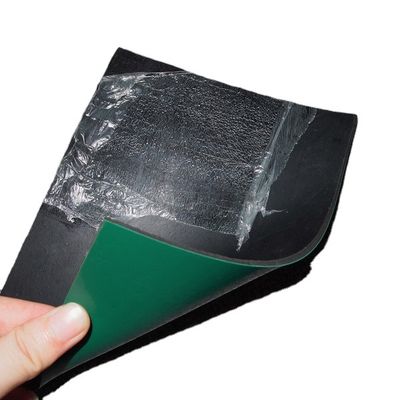

ESD Rubber Table Roll - Antistatic Work Surface Mat
HerzESD offers a comprehensive range of ESD table mats in flexible rubber and vinyl materials, designed for static control in high-tech industries. Our ESD Rubber and PVC mats provide excellent resistance to hot solder and chemicals, featuring a two-layer construction with a static dissipative top and conductive bottom layer.
Product Specifications
Model HZ-30617
Thickness 1.8mm, 2mm, 3mm
Standard Sizes 1m × 10m; 1.2m × 10m
Available Colors Green, Grey, Blue
Surface Finish Matte/Glossy
Surface Resistance ≤106 ohm
Volume Resistance 107-1010 ohm·cm
Key Features
  • Static Dissipation Layer: Surface resistance 107-109 ohm
  • Friction Electrostatic Charge: <100V
  • Conductive Layer: Surface resistance ≤106 ohm
  • Friction Electrostatic Charge: <50V
  • Volume Resistance: 107-1010 ohm·cm
  • Available in rolls or complete workstation kits with ground snap
  • Custom sizes available upon request
Product Images
HerzESD ESD Rubber Mat 2mm 10e6-10e9 Ohm Surface Resistance 0
HerzESD ESD Rubber Mat 2mm 10e6-10e9 Ohm Surface Resistance 1
HerzESD ESD Rubber Mat 2mm 10e6-10e9 Ohm Surface Resistance 2
HerzESD ESD Rubber Mat 2mm 10e6-10e9 Ohm Surface Resistance 3
HerzESD ESD Rubber Mat 2mm 10e6-10e9 Ohm Surface Resistance 4
Packaging & Shipping
HerzESD ESD Rubber Mat 2mm 10e6-10e9 Ohm Surface Resistance 5
HerzESD ESD Rubber Mat 2mm 10e6-10e9 Ohm Surface Resistance 6
HerzESD ESD Rubber Mat 2mm 10e6-10e9 Ohm Surface Resistance 7
HerzESD ESD Rubber Mat 2mm 10e6-10e9 Ohm Surface Resistance 8
About HerzESD
Shanghai Herzesd Industrial manufactures premium ESD products through meticulous planning and technological excellence. Our products combine quality, innovation, and advanced technology, with continuous upgrades to enhance security features. We maintain rigorous quality control and precision engineering to ensure long-lasting performance in all ESD solutions.
HerzESD ESD Rubber Mat 2mm 10e6-10e9 Ohm Surface Resistance 9
Frequently Asked Questions
Why do you need ESD protection for your production line?
Electronic components and assemblies vulnerable to electrostatic discharge (ESD) can be damaged when exposed to excessive current or impact energy. This primarily affects semiconductor components and thin-film construction elements, often through human handling. A person can accumulate several thousand volts simply by walking - discharges above 2000-3000V can damage sensitive components while being barely noticeable to humans. Implementing ESD-safe procedures according to IEC 61340 or ANSI S2020 standards forms the foundation of effective static control and quality assurance.
Why choose HerzESD?
HerzESD is committed to providing accurate information and optimal ESD solutions, even when it challenges conventional industry wisdom. We partner with reliable manufacturers to deliver technologically advanced static control products. Our international collaborations ensure we remain at the forefront of ESD protection innovation, continually improving solutions for static electricity control in industrial environments.
