詳細情報 |
|||
| 材料: | エヴァ | 色: | 黒 |
|---|---|---|---|
| 密度: | 80〜100kg/m3 | 体積抵抗率: | 10e3-10e6 Ω.cm、10e6-10e9 Ω.cm |
| 細胞構造: | 閉鎖した細胞 | 弾性: | 良い |
| 圧縮の抵抗: | 良い | 絶縁: | はい |
| Shakeproof: | はい | 熱減少: | はい |
| ノイズリダクション: | はい | 軽量: | はい |
| 耐薬品性: | はい | 抗菌: | はい |
| 防水: | はい | ||
| ハイライト: | Black EVA Foam Sheet,Eco-friendly ESD Foam,Closed Cell Structure Antistatic Foam |
||
製品の説明

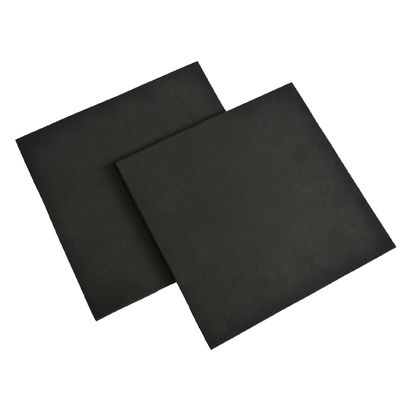

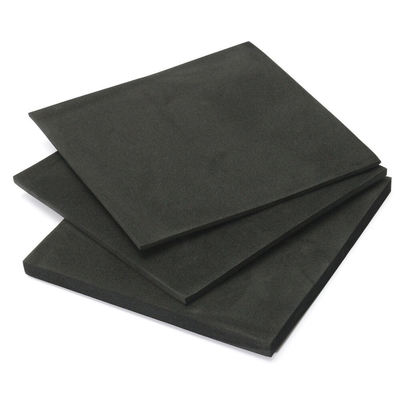

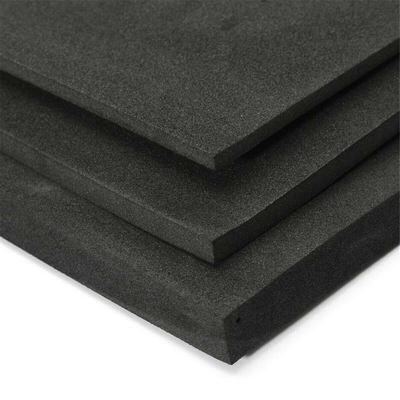

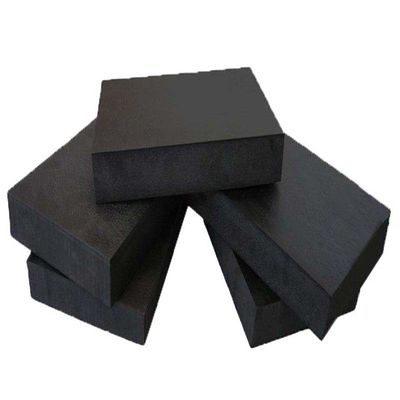

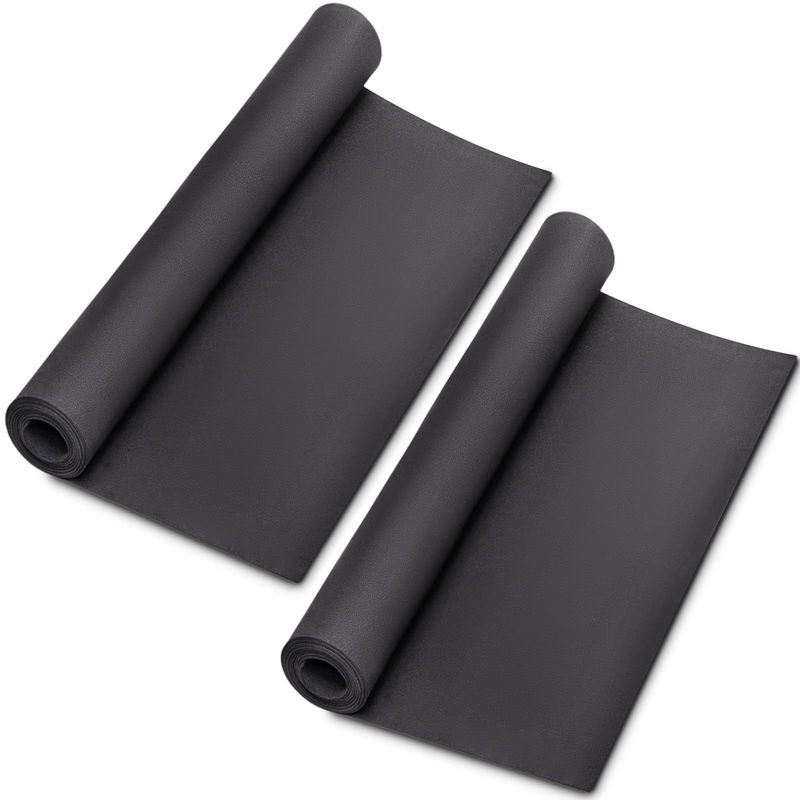

EVA Foam Sheet Antistatic Conductive Foam ESD EVA Foam Sponge Sheets Packing Material
Technical Specifications
| Item | Technical Data | |
|---|---|---|
| Conductive | Antistatic | |
| Model | HZ-1204A | HZ-1204B |
| Color | Black | Black |
| Density | 80-100Kg/m³ | |
| Volume Resistivity | 10³-10⁶ ohm.cm | 10⁶-10⁹ ohm.cm |
EVA Foam Sheet Features
EVA foam (Ethylene Vinyl Acetate) has a closed cell structure and is an environmentally friendly foam material. It can be used for:
- Children's manual crafts and toys
- Shoe sole material
- Thermoforming and die-cut applications
- Compress formed logos
- Screen printing and thermal transfer printing
- Vacuum forming and glue coating
Key properties include:
- Good elasticity and compression resistance
- Excellent insulation properties
- Shockproof and noise reduction
- Heat resistant and lightweight
- Chemical resistant and antibacterial
- Waterproof and nontoxic
- Available in bright, colorful options
- Suitable for wide temperature ranges
Why You Need ESD Protection For Your Production Line
Electronic components or assemblies at risk from electrostatic discharges (ESD) are among those sensitive elements which can be destroyed or damaged if the permitted levels of current or impact energy are exceeded. As a rule, these are always semi-conducting components and most are also thick- and thin-film construction elements.
This type of construction element is mostly damaged through human mishandling. A human-being can charge several thousands of volts just by walking. A discharge can be felt by humans from approximately 2000-3000 V, a current which is already well above the 'tolerance level' of many ESD components.
Before buying or implementing ESD safe products, one needs implementing an ESD safe procedure according to the ESD standards IEC 61340 or ANSI S2020 which is the foundation of ESD preventive protective work and a greater guarantee of quality assurance.
Why Choose HerzESD?
HerzESD strives to serve our customers better by offering correct and clear explanatory answers. We try to do so, even when informing our customers better means contradicting a more established but sometimes flawed opinions on the market.
At HerzESD we pride ourselves on ensuring the only correct ESD solution. To continue this vision we need reliable ESD manufacturers and suppliers on which we can always count. HerzESD is a solid partner and together with our international partners we stay strong and vigilant in regards to possible improvements or new solutions in tackling and controlling static electricity.
