詳細情報 |
|||
| 材料: | PPプラスチック | サイズ: | 400×300×230mm |
|---|---|---|---|
| Surafaceのresisatnce: | 10e4-10e6 ohnm 10e6-10e9のオーム | 色: | 黒 |
| アプリケーション: | 貯蔵に電子componnets | パッケージ: | 普通によるフィルムまたはフィルムが付いているパレット |
| MOQ: | 100pcs | 生産時間: | 3～5営業日 |
| カバー: | 持っている、カバー サイズはあることができる:600*400mm | 名前: | ESDの収納箱 |
製品の説明

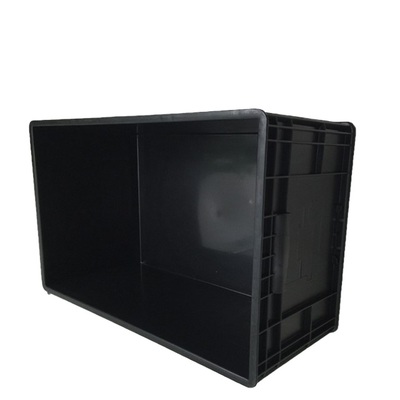

Durable ESD PP Injection box For Industry
Professional protection for electrostatic-sensitive components (ESDs) in industrial storage, transportation, and handling scenarios.
Permanent Antistatic Protection
Crafted from high-quality antistatic plastic, the container integrates permanent electrostatic dissipation technology—no fading of protective performance over time. It eliminates the risk of static discharge damaging valuable electronics, circuit boards, semiconductors, or precision parts, ensuring component safety at every stage.
Complies with key industry standards:
- IEC 61340-5-1
- ANSI/ESD S20.20
Conductive material allows the charge to move very fast and has a low resistance.
Static dissipative material allows the charge to move quickly but slower than conductive material.
An insulative product has no movement or a very high resistance.
If parts are sensitive to electrical charges they should be stored in a conductive container.
Other different sizes; Notes:* Lid cover optional
| Model | Ext.dim.mm (L×W×H) | Int.dim.mm (L×W×H) | Model | Ext.dim.mm (L×W×H) | Int.dim.mm (L×W×H) | ||
| *HZ-26132 | 615x430x320 | 580x395x310 | *HZ-24928 | 495x370x285 | 465x345x275 | ||
| *HZ-26125 | 615x430x250 | 580x395x245 | *HZ-24922 | 495x370x230 | 465x345x220 | ||
| *HZ-26120 | 615x430x200 | 580x395x195 | *HZ-24916 | 495x370x165 | 465x345x160 | ||
| *HZ-26115 | 615x430x150 | 580x395x145 | *HZ-24912 | 495x370x125 | 465x345x120 | ||
| *HZ-26540 | 600x500x400 | 560x460x390 | *HZ-24328 | 400x300x280 | 365x265x275 | ||
| *HZ-26535 | 600x500x355 | 560x460x350 | *HZ-24323 | 400x300x230 | 365x265x220 | ||
| *HZ-26530 | 600x500x305 | 560x460x300 | *HZ-24317 | 400x300x170 | 365x265x165 | ||
| *HZ-26525 | 600x500x255 | 560x460x250 | *HZ-24315 | 400x300x148 | 365x265x135 | ||
| *HZ-26516 | 600x500x160 | 560x460x155 | *HZ-24312 | 400x300x120 | 365x265x115 | ||
| *HZ-26434 | 600x400x340 | 565x365x330 | HZ-23215 | 300x200x148 | 265x165x135 | ||
| *HZ-26428 | 600x400x280 | 565x365x270 | HZ-23212 | 300x200x120 | 265x165x115 | ||
| *HZ-26423 | 600x400x230 | 565x365x220 | HZ-26941 | 690x485x410 | 650x450x400 | ||
| *HZ-26417 | 600x400x170 | 565x365x160 | HZ-27418 | 700x450x180 | 665x415x170 | ||
| *HZ-26415 | 600x400x148 | 565x365x137 | HZ-26544 | 650x440x350 | 610x400x340 | ||
| *HZ-26412 | 600x400x120 | 565x365x110 | HZ-26640 | 660x400x165 | 620x365x160 | ||
| *HZ-25438 | 545x425x380 | 510x390x370 | HZ-25426 | 540x415x260 | 500x380x250 | ||
| *HZ-25430 | 545x425x305 | 510x390x300 | HZ-22107 | 480x350x175 | 440x320x165 | ||
| *HZ-25424 | 545x425x240 | 510x390x230 | HZ-24215 | 420x310x150 | 380x280x145 | ||
| *HZ-25415 | 545x425x150 | 510x390x145 | HZ-23613 | 360x270x135 | 320x240x125 | ||
| HZ-25030 | 500x310x300 | 465x270x290 | HZ-24822 | 480x355x220 | 445x318x210 | ||
| HZ-22150 | 510*345*185 | 464*300*175 | HZ-24832 | 480x355x320 | 445x318x310 | ||
| HZ-22132 | 720x560x380 | 680x515x370 | HZ-22136 | 560x430x145 | 515x350x140 | ||
| *HZ-22127 | 580x368x200 | 535x345x195 | HZ-22137 | 585x405x175 | 538x360x170 | ||
| *HZ-22128 | 580x368x165 | 535x345x155 | HZ-22138 | 530x370x205 | 490x330x200 | ||
| Model | Size(mm) | Model | Size(mm) | Model | Size(mm) | ||
| HZ-24635 | 465×350×15 | HZ-26050 | 600×500×15 | HZ-25139 | 510×390×15 | ||
| HZ-25839 | 580×390×15 | HZ-26040 | 600×400×15 | HZ-25439 | 540×390×15 | ||
| HZ-24030 | 400×300×10 | ESD Box Lids’ Sizes | |||||
Versatile Applications:
Ideal for any workspace requiring strict static control:
- Electronic assembly lines
- Laboratory testing environments
- Logistics & shipping (protects components during transit)
- Manufacturing facilities (semiconductors, precision instruments)
Durable, reusable, and easy to clean—reduces waste and lowers long-term storage costs.
